CANTILEVER (KNEXUS-CANTILEVER)

Cantilever uses a platform that is driven upwards and downwards similar to 2DS. The difference being both the columns and cylinders are shifted to one side of the platform in order to free the other side. The cantilever Stackpark is installed in the driveways, touching the compound wall or any other corner. When the platform is at its peak level, the driveway is clear for normal usage.

General Specifications

Loading Capacity 1200 Kgs
Drive Hydraulic
Coating Sand blasted, Epoxy Painted System. Hot Dip Galvanized platforms
PowerPack 3 phase Induction Motor - 3 HP

Structural Loads of system

Vertical 7500 Kgs
Horizontal 1000 Kgs

Electrical Requirement for system

Incoming Supply 3 phase, 50 Hz, 415 volts AC with Neutral and Earthing to every powerpack
Switchgear 4 pole, 63 amps MCB for each powerpack
Cable from Main switch to MCB 4 core, 2.5 sq mm, armoured Copper cable with a seperate earth wire
Cantilever schematic side view

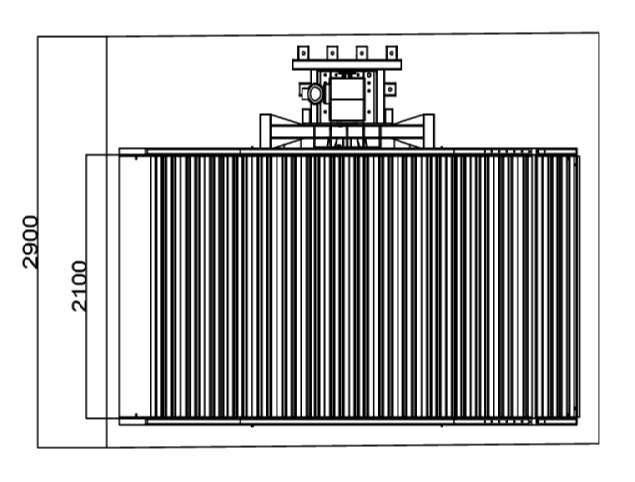

Cantilever schematic top view
