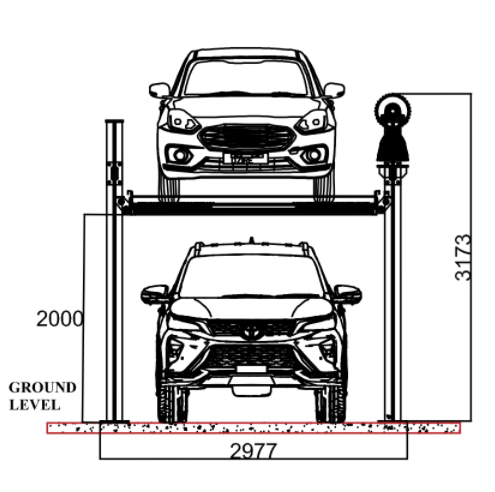

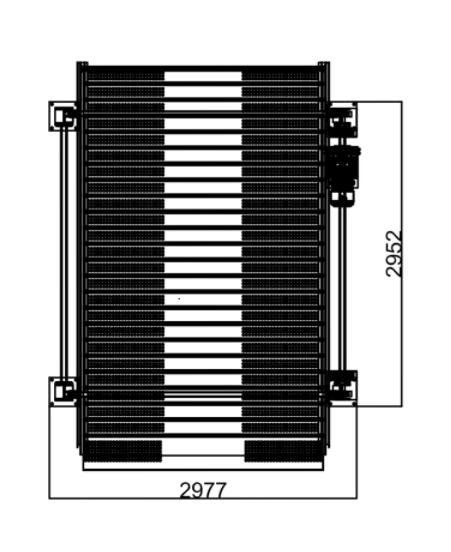

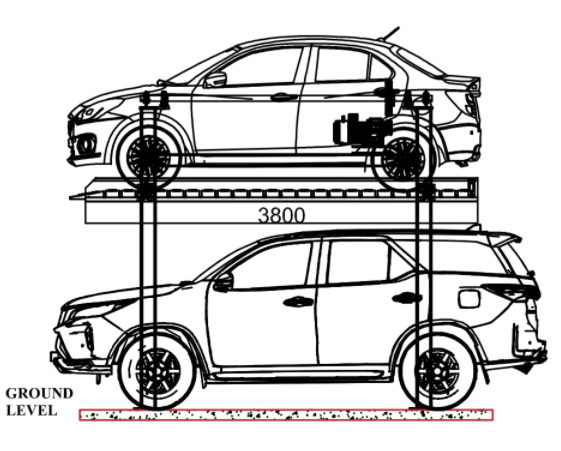

MECHANICAL STACK 4 POLE(KNEXUS-MECHANICAL)

The Mechanical Stack 4 Pole Parking System is a reliable and space-efficient parking solution that allows two vehicles to be parked vertically within a single parking space. Its robust four-column structure provides excellent stability and safe lifting operation. The system is ideal for residential, commercial, and showroom applications where maximum parking capacity is required in limited space.

General Specifications

Loading Capacity	2000 Kgs per car
Drive	Electro-Mechanical
Coating	Geared Motor with Chain sprocket mechanism
Geared Motor power	1.5 Kw
Electric Power	3ph, AC 415V, 50Hz

Car Dimensions

Height	2100 mm
Weight	Max. 2000 Kgs
Width	2000 with Open Mirror

Electrical Specifications

Incoming Supply	3 phase, 50 Hz, 415 volts AC with neutral & separate earthing wire
Switchgear Requirement	4 pole, 63 Amps MCB for each hydraulic powerpack
Control Voltage	Safe 24V DC auxiliary electrical control circuit
