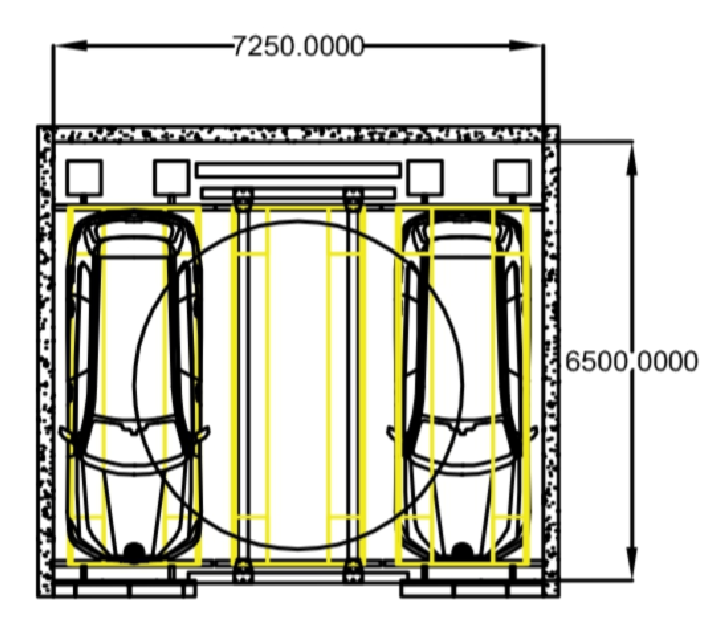

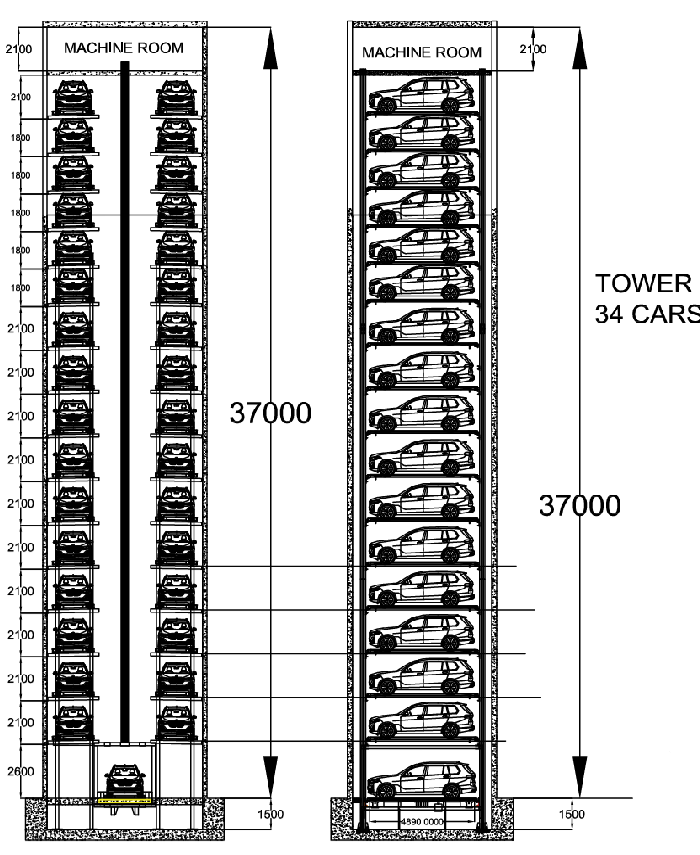

Mechanical Structure Type Tower
A self-supporting mechanical steel tower configuration. This system is enclosed with metal sheet cladding or glass panels, making it ideal for standalone outdoor installations on empty commercial plots, shopping malls, or corporate headquarters.
Technical Specifications
Maximum Car Size:
| Length | 5000 MM - 5200 MM |
| Width | 2000 MM - 2100 MM (with mirror open) |
| Height | 1700 MM - 2100 MM |
| Weight | 2000 KG / 2500 KG |
Vertical Driving Unit
| Motor Type: | Wire Rope |
| Motor Power: | 22/30 kW (Vector Motor) |
| Speed | 60 m/min or 90 m/min |
| Drive | Geared Motor with Brake |
Horizontal Drive
| Speed: | 15 m/min |
| Drive: | Geared Motor with Brake |
| Power: | 1.5 KW / 2 HP |
Turntable (Optional)
| Motor Power: | 3 HP / 2.2 KW |
| Speed: | 7 RPM |
| Drive: | Geared Motor with Brake |
Features
| Main Power: | AC 415V, 3 Ph, 50Hz |
| Lighting: | AC 220V, 1 Ph, 50Hz |
| Operation: | Touchscreen Interface |
| Control: | PLC (Programmable Logic Controller) |
| Single Entry & Exit: | Turntable (Optional) |

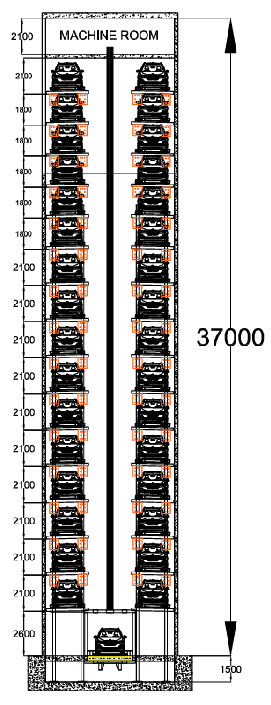

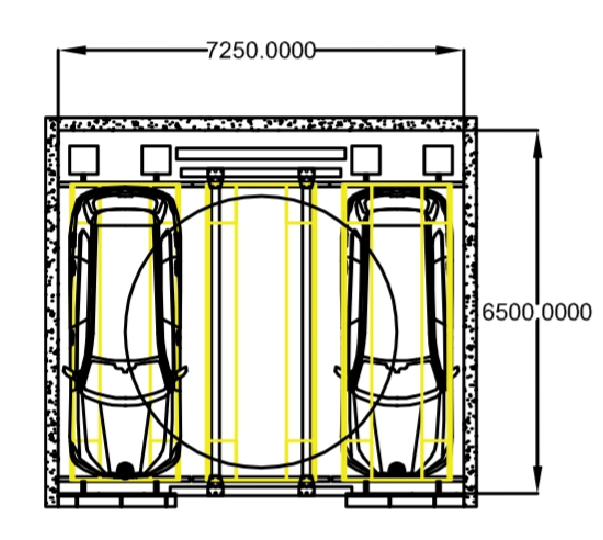

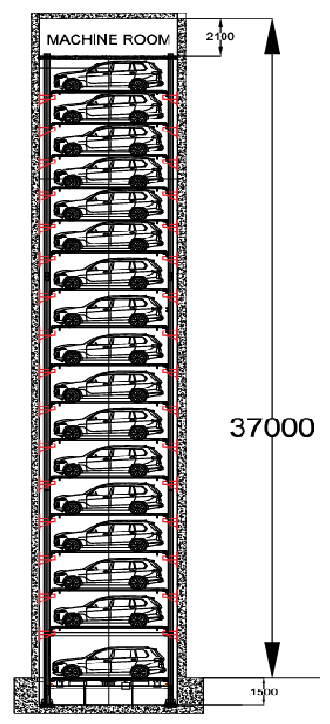

RCC Bracket Type Tower
Designed to be integrated directly inside a concrete building shaft (RCC). Guide rails and lift structures are bolted onto brackets anchored to concrete walls. It is highly optimized for indoor installations in luxury high-rises and basements.
Technical Specifications
Maximum Car Size:
| Length | 5000 MM - 5200 MM |
| Width | 2000 MM - 2100 MM (with mirror open) |
| Height | 1700 MM - 2100 MM |
| Weight | 2000 KG / 2500 KG |
Vertical Driving Unit
| Motor Type: | Wire Rope |
| Motor Power: | 22/30 kW (Vector Motor) |
| Speed | 60 m/min or 90 m/min |
| Drive | Geared Motor with Brake |
Horizontal Drive
| Speed: | 15 m/min |
| Drive: | Geared Motor with Brake |
| Power: | 1.5 KW / 2 HP |
Turntable (Optional)
| Motor Power: | 3 HP / 2.2 KW |
| Speed: | 7 RPM |
| Drive: | Geared Motor with Brake |
Features
| Main Power: | AC 415V, 3 Ph, 50Hz |
| Lighting: | AC 220V, 1 Ph, 50Hz |
| Operation: | Touchscreen Interface |
| Control: | PLC (Programmable Logic Controller) |
| Single Entry & Exit: | Turntable (Optional) |

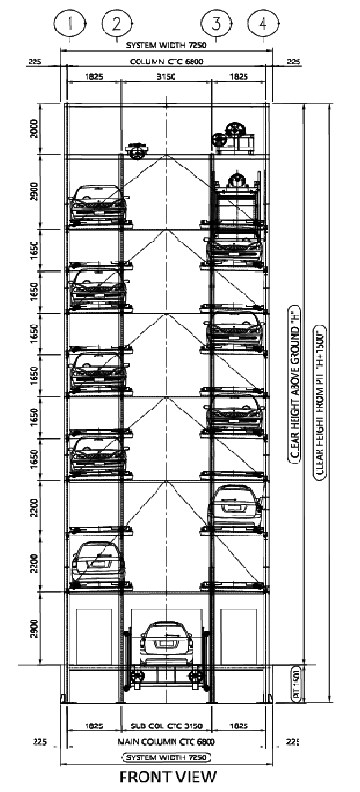

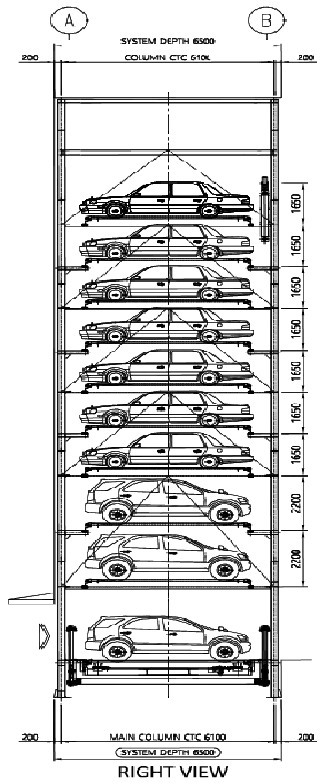

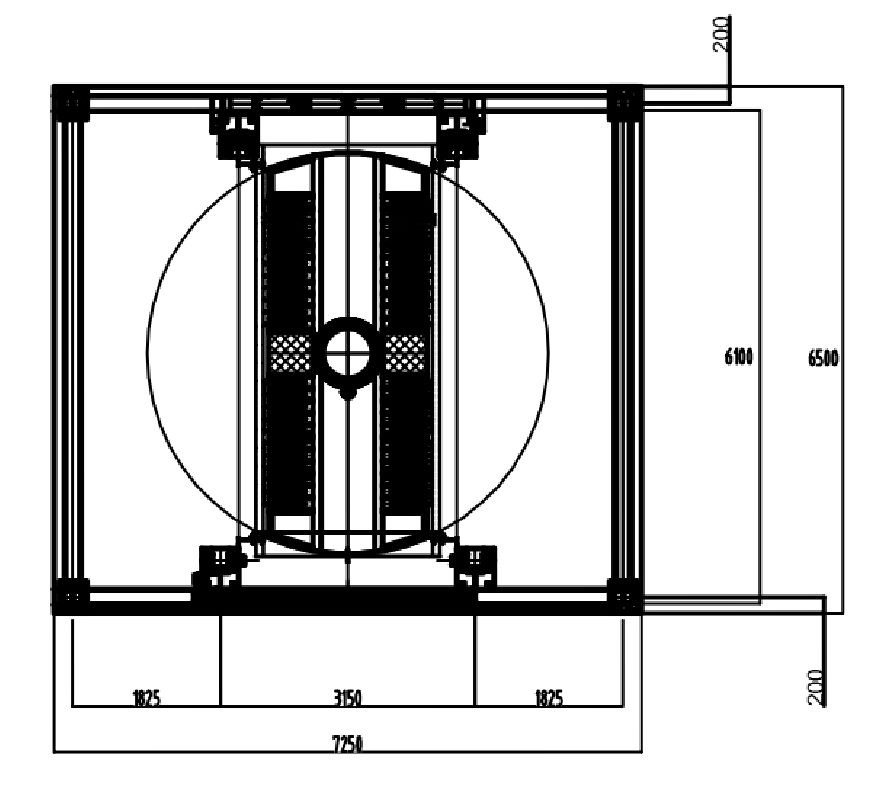

Open Steel Structure Type Tower
A skeleton vertical steel frame system left open or partially shaded. Perfect for outdoor parking lots, car dealerships, or industrial parking yards where a full envelope cladding is not required, minimizing material costs and setup times.
Technical Specifications
Maximum Car Size:
| Length | 5000 MM - 5200 MM |
| Width | 2000 MM - 2100 MM (with mirror open) |
| Height | 1700 MM - 2100 MM |
| Weight | 2000 KG / 2500 KG |
Vertical Driving Unit
| Motor Type: | Wire Rope |
| Motor Power: | 22/30 kW (Vector Motor) |
| Speed | 60 m/min or 90 m/min |
| Drive | Geared Motor with Brake |
Horizontal Drive
| Speed: | 15 m/min |
| Drive: | Geared Motor with Brake |
| Power: | 1.5 KW / 2 HP |
Turntable (Optional)
| Motor Power: | 3 HP / 2.2 KW |
| Speed: | 7 RPM |
| Drive: | Geared Motor with Brake |
Features
| Main Power: | AC 415V, 3 Ph, 50Hz |
| Lighting: | AC 220V, 1 Ph, 50Hz |
| Operation: | Touchscreen Interface |
| Control: | PLC (Programmable Logic Controller) |
| Single Entry & Exit: | Turntable (Optional) |
